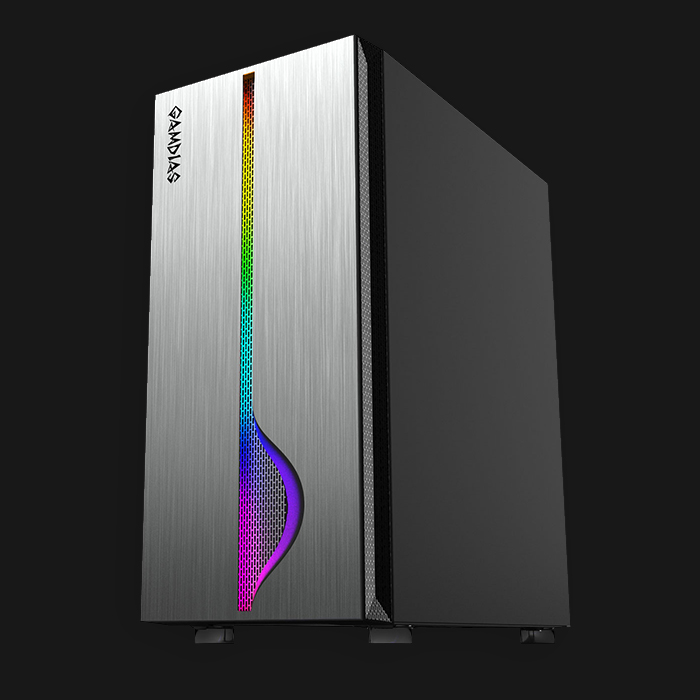

Gamdias Mars M1 Tempered Glass RGB Mid-Tower Chassis



Gamdias Mars M1 Tempered Glass RGB Mid-Tower Chassis

Rising Star of the Realm

Forged by the raging inferno, the sharp shimmer, and sturdy structure becomes the signature of the MARS series. The anodized aluminum tower turns into the incarnation of the God of war, MARS, rising and dazzling the entire realm.

Tool-Free Installation

Boasting on its straightforward installation, the MARS M1 is equipped with seamless tempered glass. Therefore you are able to function the side window without any tools, which displays your internal rig through a 4mm tinted panoramic tempered glass side panel. Let the masterpiece astonish the whole planet!

One-Press and Sync All

The handy I/O port on the top of the case features an RGB light strips control button, allowing you to cycle through the lighting effects with a simple button. High-speed USB 3.0, two USB 2.0 ports, an HD audio jack, and a power button are included on the top of the case.

Keep it Clean

The removable dust filter is magnetically attached at the top of the case, a design feature to minimize internal dust and make it easy to clean.

Rev Up the Atmosphere

Being compatible with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and AS Rock Polychrome motherboard RGB software, MARS M1 is able to synchronize with any MB that incorporates a 5V 3-Pin addressable RGB header. Rev up the gaming atmosphere through these sensational lighting effects by MARS M1 now!

Ample Accommodation

The accommodation inside MARS M1 is able to support up to six 120mm fans. Mounting points for a 280mm, 240mm radiator at the top and front, and 120 mm radiator at the rear.

Other Supports



HDD cage	2 x 3.5″ or 1 x 2.5″ + 1 x 3.5
VGA	340mm
PSU	170mm

MARS M1 OVERVIEW

“Distinctive Arsenal”

Mars M1 is a mid-tower case with an anodized aluminum panel and a LED strip with rainbow color streaming effects. Motherboard supports up to ATX. Furthermore, the case is compatible with the latest 5V ARGB motherboard synchronization; you can have spectacular lighting effects on the case. To sum up, it is a sturdy tower that helps you claim every victory.

FEATURES

• Anodized Aluminum Panel
• A LED strip with Rainbow Color Streaming Lighting
• One-Touch to Easily Switch RGB Streaming Lighting Style, and LED off
• Support RGB Motherboard Sync Software
• Support Motherboards up to ATX
• I/O Front Panel with Rainbow Color Streaming Lighting and Independent Switch
• Seamless Tempered Glass Window
• Easily Accessible I/O Ports
• Magnetic Dust Filter
• Power Cover Design

Specifications
Product Name			MARS M1
Case Type			MID Tower
Motherboard Support			mini-ITX, microATX, ATX
Synchronization			5V 3-Pin Addressable Header
Color			Black
Expansion Slots			7
Material			SPCC, ABS, Tempered Glass, Aluminum
Window			Left
Radiator Support			Top:280 mm Front:280 mm Rear:120 mm
Fan Support			Top: 2 x 120mm , 2 x 140mm Front: 3 x 120mm , 3 x 140mm Rear: 1 x 120mm
Pre-installed Fans			Rear: 1 x 120mm Fan (The specification might be different for Brasil market)
Drive Bays			“2 x 3.5″” or 2 x 2.5″” or 1 x 2.5″”+1 x 3.5″”(HDD Cage) 2 x 2.5″””
I/O Port			USB 3.0 x1, USB 2.0 x2, HD Audio x1, LED Control x1
Clearance			CPU cooler height limitation: 160mm VGA length limitation: 340mm PSU length limitation: 170mm
Dimension(LxWxH)			402 x 210 x 475 mm 15.8 x 8.3 x 18.7 inch
Chassis Dimension (L x W x H)			360 x 210 x 458 mm 14.2 x 8.3 x 18 inch
Net Weight			6.3 kg / 13.9 lb
